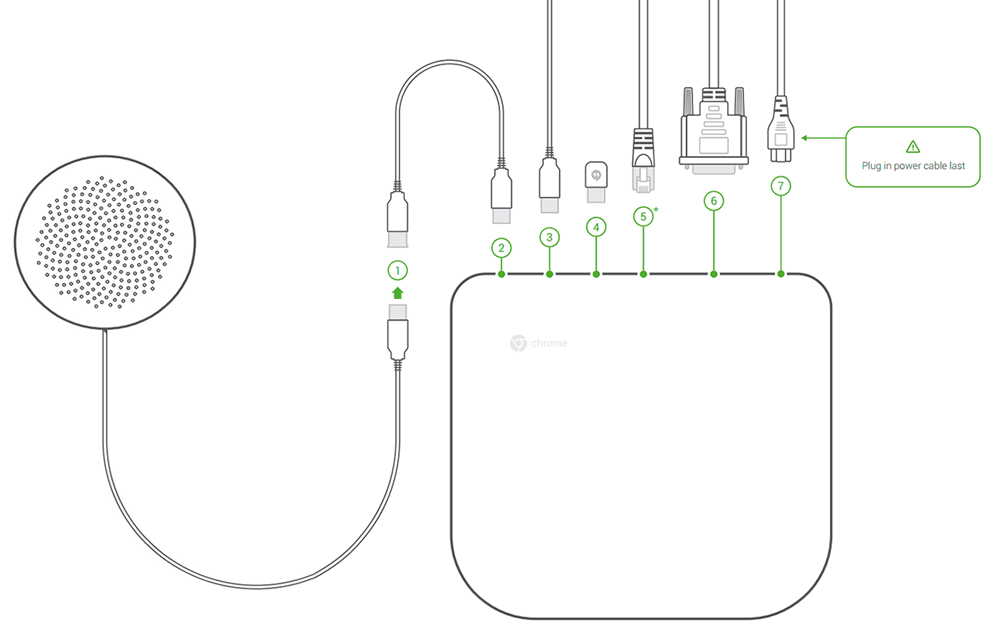

Connect your cables

Use the included cables and sensor to connect your Chromebox to the other system components, as follows:

1. Speaker/microphone—speaker cable
2. USB extension cable (if needed)
3. Camera (also with USB extension cable, if needed)
4. Remote control sensor

5. Internet—Ethernet cable

   Tip: Although you can use your Chromebox for meetings device over a wireless network connection, we recommend using a wired network connection for best sound and video quality.

6. Display—DVI cable

7. Power outlet—power cable
